MASTERFLEX
PERISTALTIC PUMPS



Powerful pumps built to last in challenging process, research and production environments.

Masterflex L/S
Masterflex part of Avantor.png
Masterflex Peristaltic pumps

Masterflex Peristaltic pump
system provide superior accuracy and repeatability
and ensure optimal performance when used
with the proper tubing

Series

ตัวแทนจำหน่าย Masterflex

C/L

small flow rate

(0.002 to 43 mL/min)

Masterflex model L/S

L/S

High-accuracy

(0.006 to 3400 mL/min)

Masterflex model I/P

I/P

Powerful systems

(0.0006 to 26 LPM)

Masterflex B/T series

B/T

Highest Flow rate

(0.3 to 42 LPM)

Features

  • Designed with maintenance-free high-accuracy motor and a graphical interface—makes setup and operation easier than ever!

  • These precision drives offer analog remote control options and simple programming—ideal for automated process applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size.

  • Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.

Applications

  • Bioprocess (Downstem)

  • Pharmaceutical & Biotech

  • Fermentation

  • Process Filtration

  • Media Transferring

  • Media Preparation

​

  • Flow Injection analysis

  • pH acid/base monitoring

  • Multichannel Dispensing

  • Composite Sampler

  • etc.



MASTERFLEX

Pump Heads


Masterflex part of Avantor.png
ตัวแทนจำหน่าย Masterflex
Masterflex Pump Head.png

Versatility - a Pump Head for every application

Masterflex Easy load II pump head
Masterflex Standard head pump.jpg
Masterflex Easy load pump head.jpg
Masterflex multichannel pump head.jpg
Masterflex Cytoflow pump head.jpg
Masterflex Easy load 3 pump head .jpg
Masterflex Easy load II pump head with open head sensor.jpg
Masterflex PTFE pump head.jpg

Easy Load

New design automatic tubing retention allow for multiple tubing sizes.

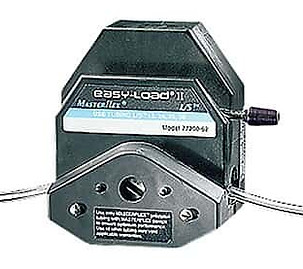

Easy Load II

New design automatic tubing retention allow for multiple tubing sizes.

Easy Load II with Open-Head sensor

available with integrated open-head sensor-connects directly to sensor-equipped drives

Easy Load 3

same side tubing entry/exit permits easy integration into space-limited.

Cytoflow

The best option for pumping live cells and shear-sensitives fluids.

Multichannel

get low-pulsation synchronous flow in multiple channels without cartridges

Standard

Standard Heads are precision molded to accommodate a single size of tubing

PTFE-tubing

ideal for high-purity fluids and aggressive organic solvents


Peristaltic pump tubings


Masterflex Tubing.jpg

  • Masterflex Tubing is custom extruded to fit Masterflex pumps and engineered for long life in peristaltic pump application.

  • Advantages: Biocompatible, Ultra-smooth, Great for tissue and cell work, Chemical resistance, Heat seablable, etc.

  • Classifications: USP Class VI, FDA, RoHS, REACH, ADCF, European Pharmacopoeia, NSF, etc.

  • Sterilization: autoclave, Eto, gamma irrditation

Tubing Formulation

Masterflex Tubing.jpg

  • Silicone (Peroxide-cured)

  • Silicone (Platinum-cured)

  • Biopharm silicone (Platinum-cured)

  • Biopharm Plus silicone (Platinum-cured)

  • Pharmed BPT

  • PharmaPure

  • Puri-Flex

  • Puri-Prene

  • C-Flex

  • C-Flex Ultra

  • Chem-Durance Bio

  • Tygon E-LFL

  • Tygon E-Food

  • Tygon E-Lab

  • Tygon Fuel&Lubricant

  • PTFE

  • Versilon 2001

  • Versilon A-60-N

  • Viton

  • Solva

  • GORE STA-PURE PCS

  • GORE STA-PURE PFL

Tubing size

  • L/S Series: No. 13, 14, 16, 25, 17, 18, 15, 24, 35,36

  • I/P Series: No. 26, 73, 82, 70, 88, 89

  • B/T Series: No. 87, 91
